Hello,Welcome to DongGuan KaiChuang Precision Machinery Co.,Ltd!

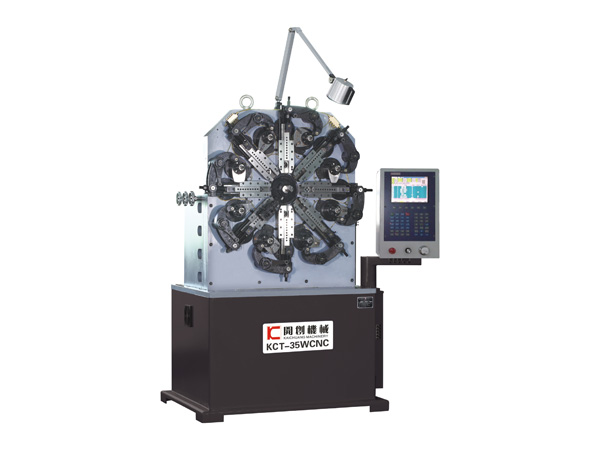

KCT-35W 3/4 Axis CNC versatile spring forming machine

Description

 KCT-35W 3/4 Axis CNC versatile spring forming machine, referred to as the 35-type spring machine, is a kind of common Octopus spring machine, processing line diameter is φ1.2-4.0mm, suitable for processing all kinds of precision compression spring, spring tower, single/double torsion spring, spring, spring, spring and flat wire shaped molding production line products are widely used in automotive, aerospace, mold, railway, engineering machinery, mining machinery, construction machinery and elevator etc..

Parameters

   機 型  Model  KCT-35W (3-axis)  KCT-35W (4-axis)
   軸 數  Axis Count  3 Axis  4 Axis
   加工線徑  Wire Size Range  φ1.2-4.0mm  φ1.2-4.0mm
   最大彈簧外徑     Max Outside Diameter  φ80mm  φ80mm
   最大送線長度  Max Feeding Length  無限(Unlimited)  無限(Unlimited)
   最大送線速度  Max Feeding Speed  110m/min  110m/min
   最大生產速度   Max Production Rate   60pcs/min  60pcs/min
   凸輪指令值  Cam Setting Value  ±0.1°~±359.9°  ±0.1°~±359.9°
   送線指令值  Feeding Length Value  ±0.01~±9999.99    ±0.01~±9999.99
   送線伺服電機  Wire Feeding Servo Motor    5.5kw  5.5kw
   凸輪伺服電機  Cam Servo Motor  3.8kw  3.8kw
   轉芯伺服電機  Quill Servo Motor  1.0kw  1.0kw
   卷曲伺服電機  Spinner Servo Motor  ----  1.0kw
   機器尺寸  Dimension(L*W*H)  1500x1000x1900mm  1500x1000x1900mm
   機器重量  Weight  2000kg  2000kg
   電 源  Power AC  380VAC 50Hz  380VAC 50Hz



  Our company's KCT-35W 3/4 Axis CNC versatile spring forming machine used in Taiwan CNC control system, reference Japan SANYO servo motor and high precision bearings, the models of a total of four axes, respectively, camshaft, feeder axis, rotating core shaft and crankshaft (with separate volume), through the system CNC code, respectively on the feeding line and cam drive system of synchronous control, can achieve 24 hours of precise operation. In addition, due to the use of high precision servo motor and computer control, we can easily produce precision and complex angle spring products with servo crimping one axis.


checkMode(1)
Main Products: CNC spring machine | computer compression spring machine | CNC versatile spring forming machine | camless spring machine
