Description

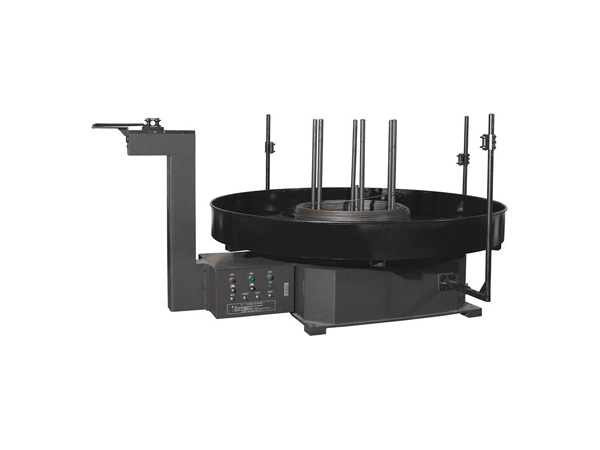

KSJ-1000 automatic wire feeding machine, referred to as 1000kg/1 tons of wire feeding shelf rack, is our company dedicated to supporting the CNC spring machine in the process of forming the wire part of the design, bearing weight less than 1000kg and the coil diameter less than 2000mm, but also with other devices such as spring machine, straightening machine, looped machine, screw machine, coiling machine and wire forming machine matched with normally.
Parameters
| 機 型 | Model | KSJ-1000 | KSJ-1500 | KSJ-1000 |
| 最大載重 | Max Capacity of Load | 1000kg | 1500kg | 2500kg |
| 最大轉速 | Max Speed of Table | 50rpm | 48rpm | 48rpm |
| 圓盤直徑 | Diameter of Table | 2000mm | 2000mm | 2000mm |
| 電 機 | Motor | 2.2kw | 3.0kw | 3.7kw |
| 電 源 | Power AC | 380v 50Hz | 380v 50Hz | 380v 50Hz |
| 尺 寸 | Dimensions(LxWxH) | 2900x2200x1365mm | 3000x2200x1400mm | 3100x2300x1400mm |
| 重 量 | Weight | 1000kg | 1500kg | 2000kg |
Automatic wire feeding machine, also called automatic wire feeding decoiler/automatic feeding machine, automatic wire feeding speed by adjusting in the process of operation, the supporting host device to maintain synchronization with the wire feeding speed automatic wire feeding shelf; when the wire, wire disconnection or after the automatic wire feeding shelf it will send the alarm signal and automatically shutdown, has the advantages of simple operation, convenient use and high work efficiency.
